Camera Profile: iPhone 7 Plus

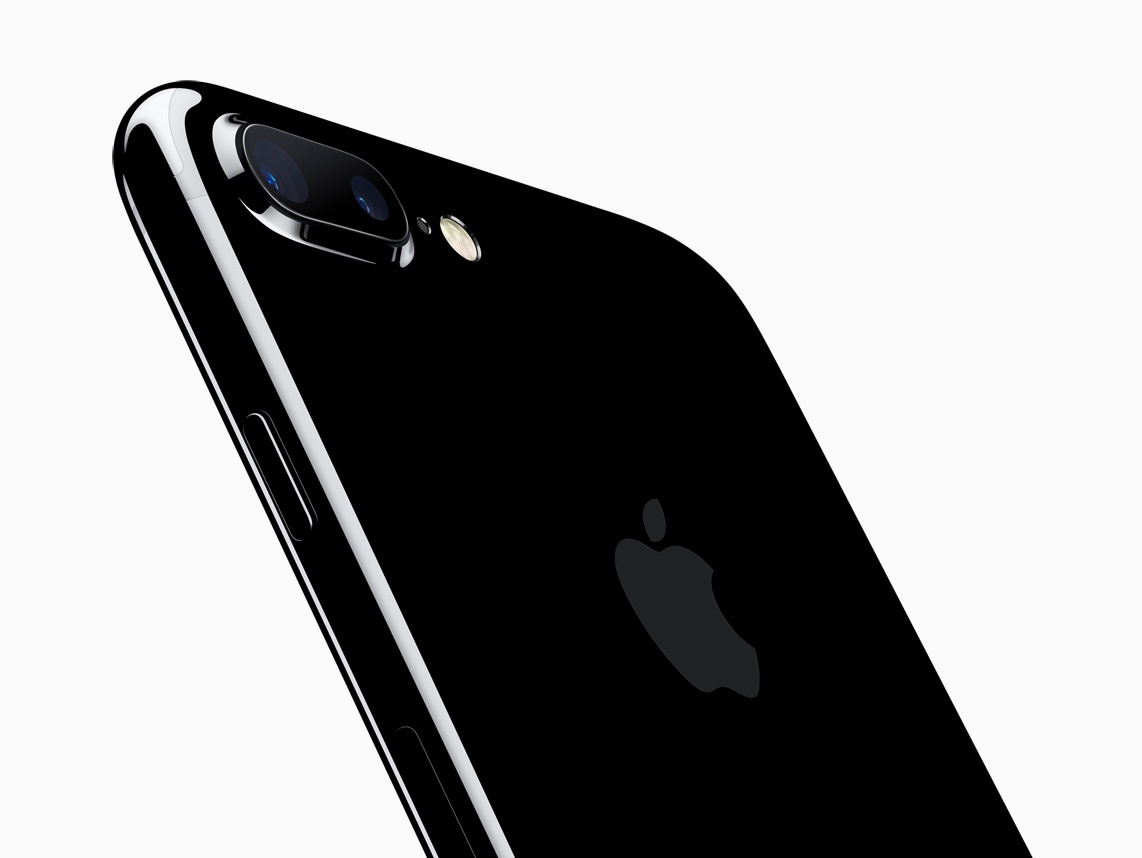

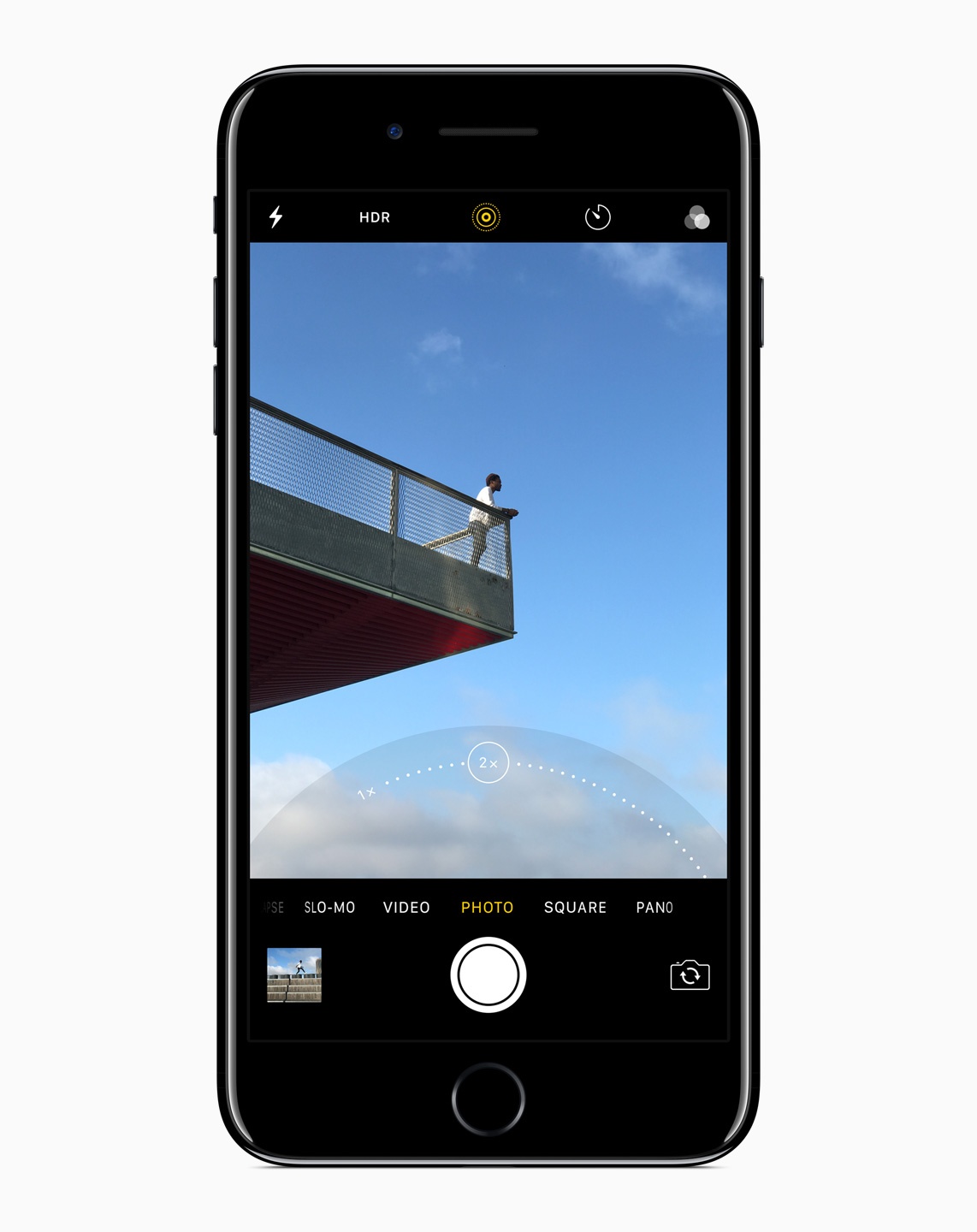

The iPhone 7 Plus is an amazing phone. Its speed and processing power is the fastest on the market.  Although it doesn’t stop at speed it also has an amazing Cameras. Yes that’s right cameras. The iPhone 7 Plus has 3 cameras in all including the FaceTime HD in the front and the 2 rear cameras. The FaceTime HD camera is a 7MP 1080p HD which helps to take the best selfies for snapchat. For low light situations the whole retina display lights up to replace a conventional LED  flash. There is a telephoto lens and a standard lens in the rear of the phone. What’s the difference? The telephoto lens can optically zoom in 2x and digitally zoom in up to 10x while the standard lens is in a regular wide angle lens. You can even switch between lenses while recording video. The duel camera helps to put together portrait mode pictures. With Portrait mode the standard lens picks out the main subject or subjects. Meanwhile the telephoto lens is finding the background and blurs it. By putting one and two together you get a portrait mode picture. Every year the iPhone camera improves until it is as powerful as it is now. The cameras also supports High Dynamic Range (HDR), and live photos. This is an incredible camera and probably the best on the market at this time. To see the iPhone 7 Plus camera in action check out the Apple Guide Original series Survival of the Point and Shoot,  follow Apple Guide on Flickr and check out ralphshepherd.com for more pictures.

Specs

Capacity

  • 32GB
  • 128GB

Weight and Size

iPhone 7 Plus Weight and Size

Display

  • Retina HD display
  • 5.5-inch (diagonal) widescreen LCD
    Multi-Touch display with IPS technology
  • 1920-by-1080-pixel resolution at 401 ppi
  • 1300:1 contrast ratio (typical)
  • Wide color display (P3)
  • 625 cd/m2 max brightness (typical)
  • Dual-domain pixels for wide viewing angles
  • Fingerprint-resistant oleophobic coating
  • Support for display of multiple languages and characters simultaneously
  • Display Zoom
  • Reachability

Splash, Water, Dust Resistant

  • Rated IP67 under IEC standard 60529

Chip

  • A10 Fusion chip with 64-bit architecture
  • Embedded M10 motion coprocessor

 Camera

  • 12MP wide-angle and telephoto cameras
  • Wide-angle: ƒ/1.8 aperture
    Telephoto: ƒ/2.8 aperture
  • Optical zoom; digital zoom up to 10x
  • Portrait mode
  • Optical image stabilization
  • Six‑element lens
  • Quad-LED True Tone flash
  • Panorama (up to 63MP)
  • Sapphire crystal lens cover
  • Backside illumination sensor
  • Hybrid IR filter
  • Autofocus with Focus Pixels
  • Tap to focus with Focus Pixels
  • Live Photos with stabilization
  • Wide color capture for photos and Live Photos
  • Improved local tone mapping
  • Body and face detection
  • Exposure control
  • Noise reduction
  • Auto HDR for photos
  • Auto image stabilization
  • Burst mode
  • Timer mode
  • Photo geotagging
  • Image formats captured: HEIF and JPEG

Video Recording

  • 4K video recording at 30 fps
  • 1080p HD video recording at 30 fps or 60 fps
  • 720p HD video recording at 30 fps
  • Optical image stabilization for video
  • Optical zoom; 6x digital zoom (iPhone 7 Plus only)
  • Quad-LED True Tone flash
  • Slo‑mo video support for 1080p at 120 fps and 720p at 240 fps
  • Time‑lapse video with stabilization
  • Cinematic video stabilization (1080p and 720p)
  • Continuous autofocus video
  • Body and face detection
  • Noise reduction
  • Take 8MP still photos while recording 4K video
  • Playback zoom
  • Video geotagging
  • Video formats recorded: HEVC and H.264

FaceTime HD Camera

  • 7MP camera
  • 1080p HD video recording
  • Retina Flash
  • ƒ/2.2 aperture
  • Wide color capture for photos and Live Photos
  • Auto HDR
  • Backside illumination sensor
  • Body and face detection
  • Auto image stabilization
  • Burst mode
  • Exposure control
  • Timer mode

Touch ID

  • Fingerprint sensor built into the Home button

Apple Pay

  • Pay with your iPhone using Touch ID in stores, within apps, and on the web
  • Complete purchases made with Apple Pay on your Mac
  • Receive and redeem rewards using rewards cards

Carriers

  • AT&T
  • Sprint
  • T-Mobile
  • Verizon
  • Virgin

Carrier and Wireless

  • Model A1660*
  • Model A1661*
    • FDD-LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30)
    • TD-LTE (Bands 38, 39, 40, 41)
    • TD-SCDMA 1900 (F), 2000 (A)
    • CDMA EV-DO Rev. A  (800, 1900, 2100 MHz)
    • UMTS/HSPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz)
    • GSM/EDGE (850, 900, 1800, 1900 MHz)
  • Model A1778*
  • Model A1784*

    Models A1778 and A1784 do not support CDMA networks, such as those used by Verizon and Sprint.

    • FDD-LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30)
    • TD-LTE (Bands 38, 39, 40, 41)
    • UMTS/HSPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz)
    • GSM/EDGE (850, 900, 1800, 1900 MHz)
  • All models
    • 802.11ac Wi‑Fi with MIMO
    • Bluetooth 4.2 wireless technology
    • NFC with reader mode

Location

  • Assisted GPS and GLONASS
  • Digital compass
  • Wi-Fi
  • Cellular
  • iBeacon microlocation

Video Calling

  • FaceTime video calling over Wi‑Fi or cellular

Audio Calling

  • FaceTime audio
  • Voice over LTE (VoLTE)6
  • Wi‑Fi calling6

Audio Playback

  • Audio formats supported:
    • AAC-LC,
    • HE-AAC,
    • HE-AAC v2,
    • Protected AAC,
    • MP3,
    • Linear PCM,
    • Apple Lossless,
    • FLAC, Dolby Digital (AC-3),
    • Dolby Digital Plus (E-AC-3),
    • and Audible (formats 2, 3, 4, Audible Enhanced Audio, AAX, and AAX+)
  • User-configurable maximum volume limit

Video Playback

  • Video formats supported:
    • HEVC,
    • H.264,
    • MPEG-4 Part 2,
    • and Motion JPEG
  • AirPlay Mirroring, photos, and video out to Apple TV (2nd generation or later)7
  • Video mirroring and video out support: Up to 1080p through Lightning Digital AV Adapter and Lightning to VGA Adapter (adapters sold separately)7

Siri

  • Use your voice to send messages, set reminders, and more
  • Get intelligent suggestions in Messages, Mail, QuickType, and more
  • Activate with only your voice using “Hey Siri”
  • Listen and identify songs

External Buttons and Connections

iPhone 7: External Buttons and Connections

Power and Battery

Lasts up to 1 hour longer than iPhone 6s Plus

  • Talk time (wireless):
    • Up to 21 hours on 3G
  • Standby:
    • Up to 16 days

  • Internet use:

    • Up to 13 hours on 3G
    • Up to 13 hours on LTE
    • Up to 15 hours on Wi-Fi
  • Wireless video playback:
    • Up to 14 hours
  • Wireless audio playback:
    • Up to 60 hours
  • Built-in rechargeable lithium-ion battery
  • Charging via USB to computer system or power adapter

Sensors

  • Touch ID fingerprint sensor
  • Barometer
  • Three-axis gyro
  • Accelerometer
  • Proximity sensor
  • Ambient light sensor

Accessibility

  • VoiceOver
  • Zoom
  • Magnifier
  • Software TTY
  • Siri and Dictation
  • Type to Siri
  • Switch Control
  • Closed Captions
  • AssistiveTouch
  • Speak Screen

Sim Card

  • Nano-SIM

Mail Attachments



  • Viewable document types
    • .jpg,
    • .tiff,
    • .gif (images);
    • .doc and .docx (Microsoft Word);
    • .htm and .html (web pages);
    • .key (Keynote);
    • .numbers (Numbers);
    • .pages (Pages);
    • .pdf (Preview and Adobe Acrobat);
    • .ppt and .pptx (Microsoft PowerPoint);
    • .txt (text);
    • .rtf (rich text format);
    • .vcf (contact information);
    • .xls and .xlsx (Microsoft Excel);
    • .zip;
    • .ics

Environmental Requirements

  • Operating ambient temperature:
    • 32° to 95° F (0° to 35° C)
  • Nonoperating temperature:
    • ‑4° to 113° F (‑20° to 45° C)
  • Relative humidity:
    • 5% to 95% noncondensing
  • Operating altitude:
    • tested up to 10,000 feet (3000 m)

Languages

Language support:

English (Australia, UK, U.S.), Chinese (Simplified, Traditional, Traditional Hong Kong), French (Canada, France), German, Italian, Japanese, Korean, Spanish (Latin America, Mexico, Spain), Arabic, Catalan, Croatian, Czech, Danish, Dutch, Finnish, Greek, Hebrew, Hindi, Hungarian, Indonesian, Malay, Norwegian, Polish, Portuguese (Brazil, Portugal), Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese

QuickType keyboard support:

English (Australia, Canada, India, Singapore, UK, U.S.), Chinese – Simplified (Handwriting, Pinyin, Stroke), Chinese – Traditional (Cangjie, Handwriting, Pinyin, Stroke, Sucheng, Zhuyin), French (Belgium, Canada, France, Switzerland), German (Austria, Germany, Switzerland), Italian, Japanese (Kana, Romaji), Korean, Spanish (Latin America, Mexico, Spain), Arabic (Modern Standard, Najdi), Armenian, Azerbaijani, Belarusian, Bengali, Bulgarian, Catalan, Cherokee, Croatian, Czech, Danish, Dutch, Emoji, Estonian, Filipino, Finnish, Flemish, Georgian, Greek, Gujarati, Hawaiian, Hebrew, Hindi (Devanagari, Transliteration), Hinglish, Hungarian, Icelandic, Indonesian, Irish, Kannada, Latvian, Lithuanian, Macedonian, Malay, Malayalam, Maori, Marathi, Norwegian, Odia, Persian, Polish, Portuguese (Brazil, Portugal), Punjabi, Romanian, Russian, Serbian (Cyrillic, Latin), Slovak, Slovenian, Swahili, Swedish, Tamil (Script, Transliteration), Telugu, Thai, Tibetan, Turkish, Ukrainian, Urdu, Vietnamese, Welsh

QuickType keyboard support with predictive input:

English (Australia, Canada, India, Singapore, UK, U.S.), Chinese (Simplified, Traditional), French (Belgium, Canada, France, Switzerland), German (Austria, Germany, Switzerland), Italian, Japanese, Korean, Russian, Spanish (Latin America, Mexico, Spain), Portuguese (Brazil, Portugal), Thai, Turkish

Siri languages:

English (Australia, Canada, India, Ireland, New Zealand, Singapore, South Africa, UK, U.S.), Spanish (Chile, Mexico, Spain, U.S.), French (Belgium, Canada, France, Switzerland), German (Austria, Germany, Switzerland), Italian (Italy, Switzerland), Japanese, Korean, Mandarin (Mainland China, Taiwan), Cantonese (Mainland China, Hong Kong, Macao), Arabic (Saudi Arabia, United Arab Emirates), Danish (Denmark), Dutch (Belgium, Netherlands), Finnish (Finland), Hebrew (Israel), Malay (Malaysia), Norwegian (Norway), Portuguese (Brazil), Russian (Russia), Swedish (Sweden), Thai (Thailand), Turkish (Turkey)

Dictation languages:

English (Australia, Canada, India, Indonesia, Ireland, Malaysia, New Zealand, Philippines, Saudi Arabia, Singapore, South Africa, United Arab Emirates, UK, U.S.), Spanish (Argentina, Chile, Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Honduras, Mexico, Panama, Paraguay, Peru, Spain, Uruguay, U.S.), French (Belgium, Canada, France, Luxembourg, Switzerland), German (Austria, Germany, Luxembourg, Switzerland), Italian (Italy, Switzerland), Japanese, Korean, Mandarin (Mainland China, Taiwan), Cantonese (Mainland China, Hong Kong, Macao), Arabic (Kuwait, Qatar, Saudi Arabia, United Arab Emirates), Catalan, Croatian, Czech, Danish, Dutch (Belgium, Netherlands), Finnish, Greek, Hebrew, Hindi (India), Hungarian, Indonesian, Malaysian, Norwegian, Polish, Portuguese (Brazil, Portugal), Romanian, Russian, Shanghainese (Mainland China), Slovakian, Swedish, Thai, Turkish, Ukrainian, Vietnamese

Definition dictionary support:

English, Chinese (Simplified, Traditional), Danish, Dutch, French, German, Hindi, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Spanish, Swedish, Thai, Turkish

Bilingual dictionary support:

Chinese (Simplified), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish

Spell check:

English, French, German, Italian, Spanish, Danish, Dutch, Finnish, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish



iPhone 7 Plus specs provided by Apple.
